Kitchen Cabinet Measuring Guide
All of our base and wall cabinets are custom made to the size you desire to fit your space, we are not restricted to industry standard widths or heights . Below are some guidlines for measuring and designing your kitchen layout.


 Tools Required


Tape Measure
Notepad
Pencil

Very Important!
Precision is key, as your items will be custom made to your specifications. Incorrect measurements lead to ill-fitting, non-returnable items. Double-check your work until you are confident that you are ordering the correct size items for your project.

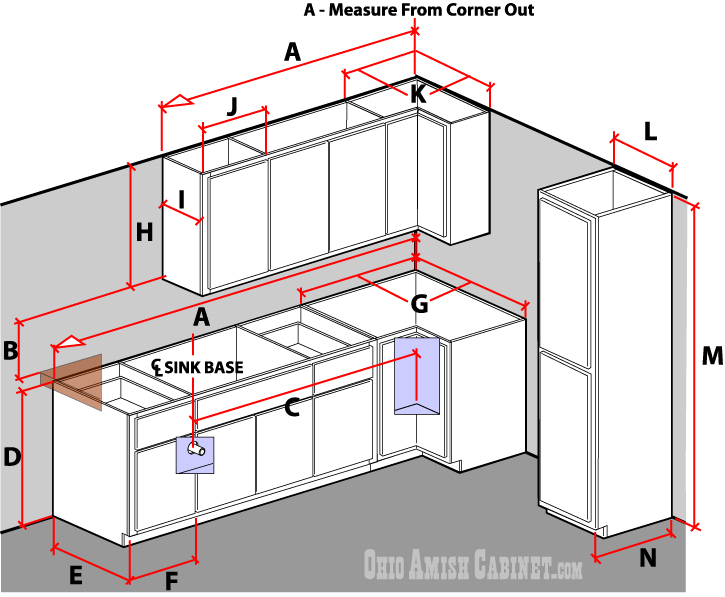

A - LINEAR FEET MEASUREMENT
Measure length of space needed for base and wall cabinets from corner out.
The minimum width we can build cabinets to is 9" (excluding corner cabinets) recommended minimum width is 12"

B - BACKSPLASH HEIGHT (HEIGHT BETWEEN COUNTERTOP AND WALL CABINETS)
Standard height is 15" to 18"

NOTE: Make sure you factor in the thickness of your countertop, standard countertops are 1-1/2"

C - POSITIONING OF SINK BASE CABINET
The center of your sink cabinet should be positioned at the centerline of where your
plumbing protrudes from your wall

D - BASE CABINET HEIGHT
Standard height is 34-1/2" (with standard 1-1/2" countertop thickness this will give you a countertop height of 36")

E - BASE CABINET DEPTH
Standard depth of base cabinets are 24"

F - BASE CABINET LENGTH
Can be made to any length from a 9".
Industry Standard Lengths are 9, 12, 15, 18, 24, 27, 30, 33, 36, 39, 42, 45, 48
G - BASE CORNER CABINET MINIMUM SPACE NEEDED - XX
Diagonal (L Shaped) Corner Base with or without lazy susan 33" Minimum from each corner out Diagonal (L Shaped) corner with Inset Drawers 36" Minimum from each corner out Diagonal (L Spaped) Dead Space Cabinet 27" Minimum from each corner out
45 Degree Corner front face cabinet - with or without lazy susan 33" minimum from each corner out 45 Degree Corner front face cabinet with drawers - 36" minimum from each corner out 45 Degree Corner front face cabinet with sink - 36" minimum from each corner out
H - WALL CABINET HEIGHT
This is very flexible to suit your needs such as over appliances, and we can manufacture to any size needed
Minimum height for wall cabinets is 12" Industry Standard wall cabinet heights are 12, 18, 30, 36 and 42

I - WALL CABINET DEPTH
Can be made to any depth, Standard cabinet depths are 12" and 15"

J - WALL CABINET LENGTH
Can be made any length from a 9" Industry Standard Lengths are
9, 12, 15, 18, 24, 27, 30, 33, 36, 39, 42, 45, 48
K - WALL CORNER CABINET MINIMUM SPACE NEEDED - XX
Diagonal (L Shaped) Corner Base 21" Minimum from each corner out 45 Degree Corner front face cabinet 21" minimum from each corner out 45 Degree Corner front face cabinet with lazy susan 24" minimum from each corner out
L - PANTRY (TALL) CABINET LENGTH
Can be made any length from a 9" Industry Standard Lengths are 18, 21, 24, 27, 30, 33, 36

M - PANTRY (TALL) CABINET HEIGHT
Can be made to any height, Industry Standard Heights are 84, 90, 96

N - PANTRY (TALL) CABINET DEPTH
Can be made to any depth Industry Standard depth of Pantry cabinets are 12 & 24
